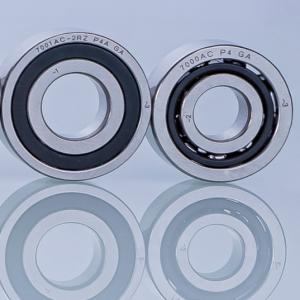

    7001 AC-2RZ P4A GA 12X28X8mm ACBB Super Precision High Capacity Single Row Angular Contact Ball Bearing

    Ask Lasest Price
    Brand Name : CNBTZC or OEM
    Model Number : 7001 AC-2RZ P4A GA
    Certification : IATF16949:2016
    Price : Please contact us,thanks
    Payment Terms : L/C,T/T
    Supply Ability : 100000pcs per month
    Delivery Time : 2-3 weeks
    • Product Details
    • Company Profile

    7001 AC-2RZ P4A GA 12X28X8mm ACBB Super Precision High Capacity Single Row Angular Contact Ball Bearing

    7001 AC-2RZ P4A GA 12*28*8 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing High Speed

    Super-precision, high-capacity, universally matchable single row angular contact ball bearing


    The 7001 AC-2RZ P4A GA bearing,bore diameter is 12 mm, outside diameter is 28 mm,width is 8 mm,featuring precise dimensions, high static load capacity, P4A precision grade, delivers superior performance and reliability for applications requiring high rotational accuracy and stability.


    Part Number7001 AC-2RZ P4A GA
    Bearing TypeAngular Contact
    Measurement UnitMetric
    DimensionsInner Bore Diameter (d)12 mm
    Inner Bore Diameter Tolerance-0.004mm to 0
    Outer Bore Diameter (D)28 mm
    Outer Bore Diameter Tolerance-0.004mm to 0
    Width (B)8 mm
    Width Tolerance-0.2mm to 0
    SpecificationsContact Angle25° (15°,40° Available)
    MaterialChrome Steel
    Cage MaterialPhenolic
    Number of Rows1 Single Row
    Seal TypeSeal on both sides
    Temperature Range-30°C to 150°C
    LubricationGrease or Oil
    Tolerance ClassP4A better than P4
    Weight0.021 kg
    Matched ArrangementNo
    Universal Matching BearingYes,back-to-back (<>),face-to-face (><) or tandem (>>) DB,DF,DT 2 bearings
    PreloadEL/Extra Light/Class A
    Load and SpeedDynamic Radial Load3070N
    Static Radial Load1270 N
    Reference Speed For Grease (r/min)88,000 rpm
    Limiting Speed For Oil(r/min)130,000 rpm

    7001 AC-2RZ P4A GA 12X28X8mm ACBB Super Precision High Capacity Single Row Angular Contact Ball Bearing

    7001 AC-2RZ P4A GA 12X28X8mm ACBB Super Precision High Capacity Single Row Angular Contact Ball Bearing


    What's the Performance Features of 7001 AC-2RZ P4A GA Bearing?


    The 7001 AC-2RZ P4 GA angular contact ball bearing is a high-precision, high-performance bearing designed for demanding industrial applications. Built to P4A-grade precision standards, it delivers exceptional accuracy and rotational stability, making it ideal for use in CNC machine tools, aerospace equipment, medical devices, and automation systems. Featuring an angular contact design, this bearing supports both radial and axial loads simultaneously, ensuring reliable performance under complex load conditions.

    Equipped with dual rubber seals (2RZ), it offers superior protection against dust, moisture, and contaminants while retaining lubrication for extended service life.

    Manufactured from high-quality materials and treated with advanced thermal processes, the 7001 AC-2RZ P4A GA provides excellent wear resistance, dimensional stability, and durability. Whether you're looking for a precision angular contact bearing, a P4A grade bearing, or a high-speed industrial bearing, this model offers the performance and reliability your application demands.


    What's the Applications of the 7001 AC-2RZ P4A GA Bearing?


    The 7001 AC-2RZ P4A GA angular contact ball bearing is expertly engineered for high-precision and high-performance applications across a wide range of demanding industries. Designed to meet the rigorous requirements of critical machinery, this bearing excels in sectors such as:

    • Machine Tools: Including high-speed spindles, CNC machining centers, and precision lathes.
    • Aerospace: Ideal for avionics systems, flight control actuators, and navigation equipment.
    • Medical Devices: Used in surgical robots, diagnostic imaging systems, and precision instrumentation.
    • Automation Systems: Perfect for high-speed servo motors, robotic arms, and industrial automation equipment.

    Featuring P4A-grade precision, an angular contact design, and dual rubber seals (2RZ), this bearing delivers superior performance under combined radial and axial loads. It also incorporates low-noise and low-vibration technology (GA grade), ensuring smooth, quiet operation even at extreme speeds.

    With enhanced contamination protection, lubricant retention, and long service life, the 7001 AC-2RZ P4A GA is a trusted choice for reliable, high-performance bearings in mission-critical applications.


    CERTIFICATERoHS & REACH, IATF16949:2016
    FeatureHigh Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity
    ServiceOEM&ODM Customized Services
    SamplesPlease Contact Us
    ServiceOnline Support,Professional Service
    SizeStandard,For custom sizes ,please contact us
    Factory ManufacturerYes
