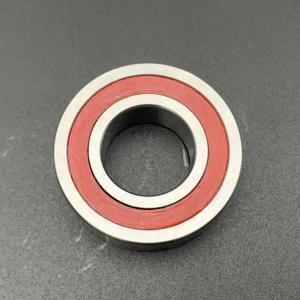

S7007 CB/HCP4A 35*62*14 mm Super Precision High Capacity Single Row Angular Contact
Ball Bearing Ceramic Balls High Speed
Super-precision, high-speed B design, single row angular contact
ball bearing with seals
The S7007 CB/HCP4A bearing,bore diameter is 35 mm, outside diameter
is 62 mm,width is 14 mm,featuring precise dimensions, high static
load capacity, P4A precision grade, and hybrid ceramic balls,
delivers superior performance and reliability for applications
requiring high rotational accuracy and stability.
| Part Number | S7007 CB/HCP4A |
| Bearing Type | Angular Contact |
| Measurement Unit | Metric |
| Dimensions | Inner Bore Diameter (d) | 35 mm |
| Inner Bore Diameter Tolerance | -0.006mm to 0 |
| Outer Bore Diameter (D) | 62 mm |
| Outer Bore Diameter Tolerance | -0.007mm to 0 |
| Width (B) | 14 mm |
| Width Tolerance | -0.2mm to 0 |
| Specifications | Contact Angle | 15° (25°,40° Available) |
| Material | Hybrid (Chrome Steel Rings, Ceramic Balls) |
| Cage Material | Phenolic |
| Number of Rows | 1 Single Row |
| Seal Type | Seal on both sides |
| Temperature Range | -30°C to 150°C |
| Lubrication | Grease |
| Tolerance Class | P4A better than P4 |
| Weight | 0.16 kg |
| Matched Arrangement | No |
| Universal Matching Bearing | No |
| Preload | Not applicable |
| Load and Speed | Dynamic Radial Load | 6890 N |
| Static Radial Load | 4800 N |
| Reference Speed For Grease (r/min) | 38,000 rpm |
| Limiting Speed For Oil(r/min) | 60,000 rpm |
What's the Performance Features of S7007 CB/HCP4A Bearing?
The S7007 CB/HCP4A bearing, engineered for high-performance
applications, features P4A grade precision, an angular contact
design for handling significant radial and axial loads. Optimized
for high-speed operation with minimal vibration, it offers smooth,
quiet performance and is constructed from premium materials to
ensure durability and longevity. This bearing maintains high
precision during operation, making it ideal for critical
applications in machine tools, automation, aerospace, medical
devices, and other industries requiring exceptional accuracy and
reliability.
What's the Applications of the S7007 CB/HCP4A Bearing?
The S7007 CB/HCP4A high-precision angular contact ball bearing is
designed for applications requiring high speed, precision, and
reliability. It is commonly used in CNC machine spindles and
machining centers for precision turning and milling, heavy-duty
equipment in steel, cement, and chemical industries, wind turbine
generator systems for stable long-term operation, high-speed
transmission systems in automotive engines and gearboxes, and
precision instruments and automation equipment such as elevator
traction machines and semiconductor manufacturing devices. This
bearing excels in diverse industrial sectors by offering low
friction and high rotational accuracy, ensuring optimal performance
and durability.
| CERTIFICATE | RoHS & REACH, IATF16949:2016 |
| Feature | High Speed and Stiffness,High Running Accuracy,High Load Carrying
Capacity |
| Service | OEM&ODM Customized Services |
| Samples | Please Contact Us |
| Service | Online Support,Professional Service |
| Size | Standard,For custom sizes ,please contact us |
| Factory Manufacturer | Yes |
