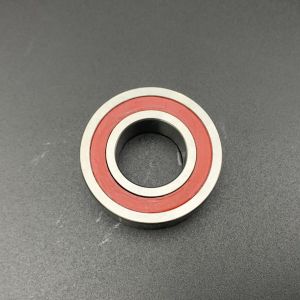

S71903 ACD/HCP4A 17*30*7 mm Super Precision High Capacity Single
Row Angular Contact Ball Bearing Hybrid Ceramic Balls High Speed
Super-precision, high-capacity, single row angular contact ball
bearing with seals
The S71903 ACD/HCP4A bearing,bore diameter is 17 mm, outside diameter is 30 mm,width is
7 mm,featuring precise dimensions, high static load capacity, P4A
precision grade, and hybrid ceramic balls, delivers superior
performance and reliability for applications requiring high
rotational accuracy and stability.
| Part Number | S71903 ACD/HCP4A |
| Bearing Type | Angular Contact |
| Measurement Unit | Metric |
| Dimensions | Inner Bore Diameter (d) | 17 mm |
| Inner Bore Diameter Tolerance | -0.004mm to 0 |
| Outer Bore Diameter (D) | 30 mm |
| Outer Bore Diameter Tolerance | -0.005mm to 0 |
| Width (B) | 7 mm |
| Width Tolerance | -0.2mm to 0 |
| Specifications | Contact Angle | 25° (15°,40° Available) |
| Material | Hybrid (Chrome Steel Rings, Ceramic Balls) |
| Cage Material | Phenolic |
| Number of Rows | 1 Single Row |
| Seal Type | Seal on both side |
| Temperature Range | -30°C to 150°C |
| Lubrication | Grease |
| Tolerance Class | P4A better than P4 (ABEC-7) |
| Weight | 0.015 kg |
| Matched Arrangement | No |
| Universal Matching Bearing | No |
| Preload | Not applicable |
| Load and Speed | Dynamic Radial Load | 3970 N |
| Static Radial Load | 2000 N |
| Reference Speed For Grease (r/min) | 56,000 rpm |
| Limiting Speed For Oil(r/min) | 90,000 rpm |
What's the Performance Features of S71903 ACD/HCP4A Bearing?
The S71903 ACD/HCP4A angular contact ball bearing is engineered for
high-precision and high-performance applications, featuring very
tight tolerances suitable for precise machinery, the ability to
handle both radial and axial loads simultaneously, high-speed
operation with stability, low torque and friction for energy
efficiency, enhanced rigidity for accuracy under heavy loads,
durability with extended service life, effective performance across
a wide temperature range.
What's the Applications of the S71903 ACD/HCP4A Bearing?
The S71903 ACD/HCP4A bearing,distinguished by its superior performance and precision, is
widely used in various industrial applications including metal
cutting machine tools (such as machining centers and high-speed
milling and grinding machines), robotics (for delicate operations
and semiconductor fault detection), printing machinery, measurement
devices, marine gyro stabilizers, and high-performance automotive
components like race car wheel hubs. Its ability to provide high
rotational accuracy, stability, and durability under demanding
conditions makes it essential for enhancing efficiency, precision,
and safety across these diverse sectors.
| CERTIFICATE | RoHS & REACH, IATF16949:2016 |
| Feature | High Speed and Stiffness,High Running Accuracy,High Load Carrying
Capacity |
| Service | OEM&ODM Customized Services |
| Samples | Please Contact Us |
| Service | Online Support,Professional Service |
| Size | Standard,For custom sizes ,please contact us |
| Factory Manufacturer | Yes |
